FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
OHMPM145 alloy is a new product developed after HRE alloy which has been widely used in high temperature electrothermal alloy materials to replace the material APM in recent years. Compared with HRE, its purity and oxidation resistance is further improved and optimized. With special rare earth elements and unique metallurgical manufacturing process, OHMPM145 has been recognized by customers in the field of high temperature heat-resistant fibers around the world. It has been successfully applied in ceramic sintering, diffusion furnace, high power density and high temperature industrial kiln.
Chemical Composition(%)
| Grade | C | Si | Cr | Al | Fe | RE |
| OHMPM145 | ≤0.04 | ≤0.4 | 20-23 | 5.8 | Bal. | A little |
Physical Properties
| Density (g/cm3) | High Temperature Strength at 1000℃ (MPa) | Fast Life at 1350℃ (hour) According to GB/T13300-91 | Emissivity in fully oxidized state |
| 7.1 | 20 | ＞80 | 0.7 |
| Max. Operating Temperature (℃) | Tensile Strength (Annealed) (N/mm2) | Elongation (%) | Resistivity at 20℃( μ.Ω.m) | Application |
| 1425 | 600-800 | ＞14 | 1.45 | works as heating wire in Ceramics Kiln/ Heat Treatment Furnace/ Electric Diffusion Furnace under high temperature |
Supply State
1. Round Wire(0.15mm-9.0mm)
Φ<1mm,Bright Surface, Spool Package
1mm<Φ<5mm,Golden Surface, Coil Package
Φ>5mm,Blue Surface, Coil Package
2.Flat Wire (Thickness:0.1-0.4mm, Width:0.5-4.5mm), bright surface, spool package
3.Strip(Thickness: 0.5-2.5mm, Width: 5.0-48mm),polished bright surface, coil package
Average Linear Expansion Coefficient:
| Temperature(℃) | 20-250 | 20-500 | 20-750 | 20-1000 | 20-1200 | 20-1400 |
| Thermal expansion coefficient×10-6/k | 11 | 12 | 14 | 15 | / | / |
Resistance Temperature Coefficient:
| Temperature(℃) | 700 | 900 | 1100 | 1200 | 1300 |
| Ct | 1.02 | 1.03 | 1.04 | 1.04 | 1.04 |

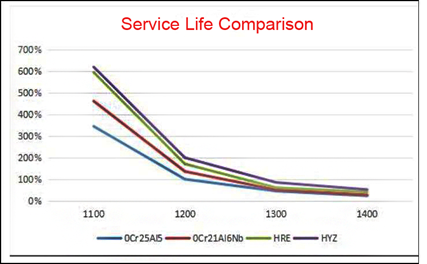

Service Life Comparison

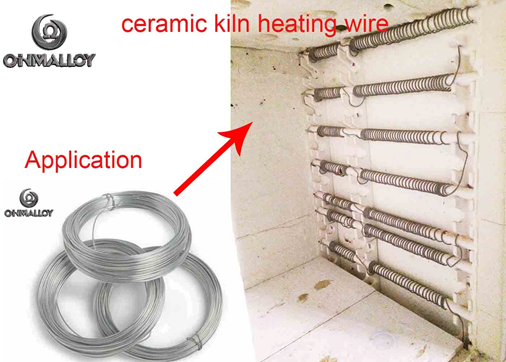

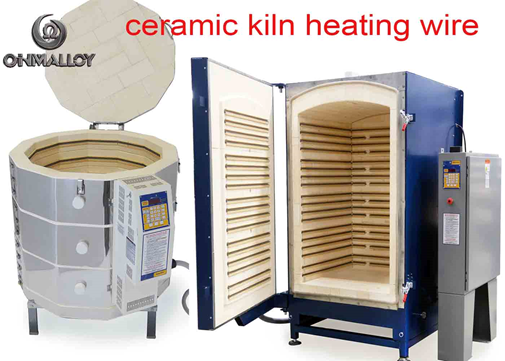

OHMPM145 Application
