Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Product Categories

Ohmalloy Material Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800
Brand: OHMALLOY/OEM
Price: 1 USD

Brand Name : OHMALLOY/OEM

Model Number : SP-K-VS-VS-0.81

Certification : ISO9001：2015

Place of Origin : shanghai

MOQ : 100 meter

Payment Terms : L/C, T/T, ,Paypal

Supply Ability : 50000 meter per month

Delivery Time : 5-15 working days after payment confirmed

Packaging Details : Coil+Paper Carton

Name : Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Cable Type : Type K

Insulation Material : Vitreous Silica（800℃，max 1000℃）

Conductor Size : 0.5mm/0.6mm/0.71mm/0.81mm/1.0mm

Color : ANSI(yellow, red)/IEC(green, white)

Application : PWHT Accessory

Contact Now

Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Cable Specification
Item Name	Thermocouple Type K Cable
Item Number	K-VS-VS-0.81
Conductor Material	+Chromel -Alumel
Conductor Dia	2*0.81mm(20AWG, 0.5mm², ±0.01mm)
Inner Insulation and Thickness	Vitreous Silica (long term: 800℃, short term: 1000℃)
Inner Insulation Diameter	1.2mm(±0.2mm)
Outer Jacket Material	Vitreous Silica (long term: 800℃, short term: 1000℃)
Finished Diameter	2.4mm*3.5mm(±0.2mm)
Weight	15.6KG/KM

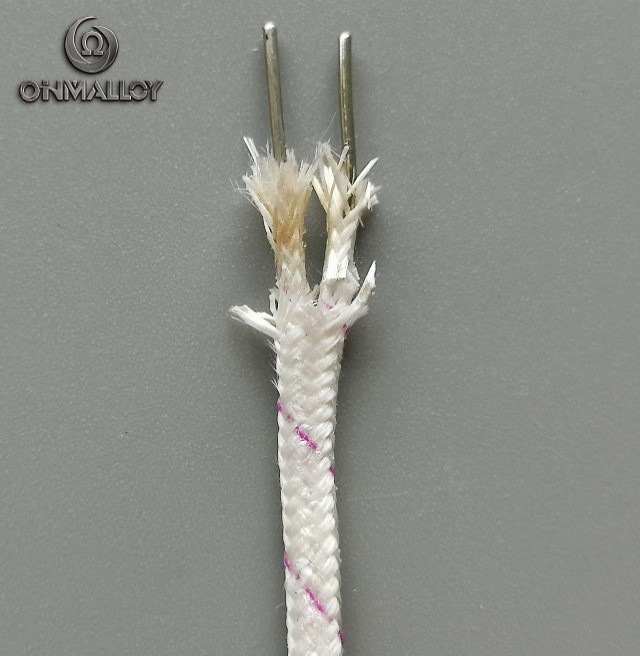

Product Name: K-VS-VS-0.81 Type K Thermocouple Extension Cable

Specification : 2X0.81mm(±0.02mm)

Outer Diameter: 2.4*3.5mm(±0.2mm)

Quantity : 3000 meter

Color code : White, Red Tracer in Positive Wire

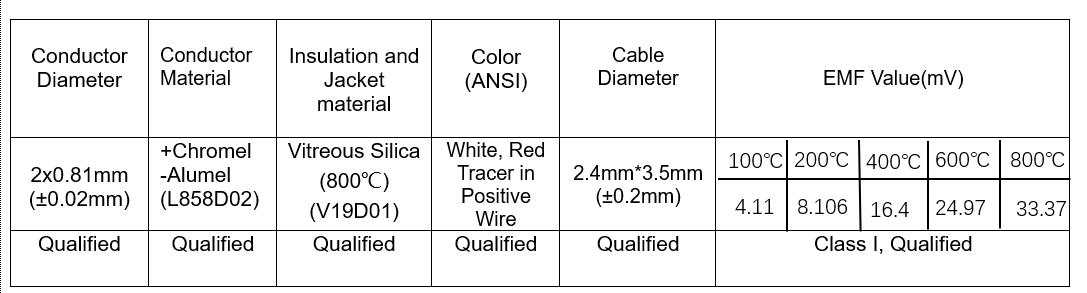

Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Conductor Material Inspection: Chromel Alumel Material Batch NO.: L858D02

Insulation Material Inspection: Vitreous Silica Material Batch No.: V19D01

SiO₂	Infiltrant content	Fiberglass Nominal Diameter	Max Working Temperature (long time)	Tex
98%	0.9%	8μm	800℃	160

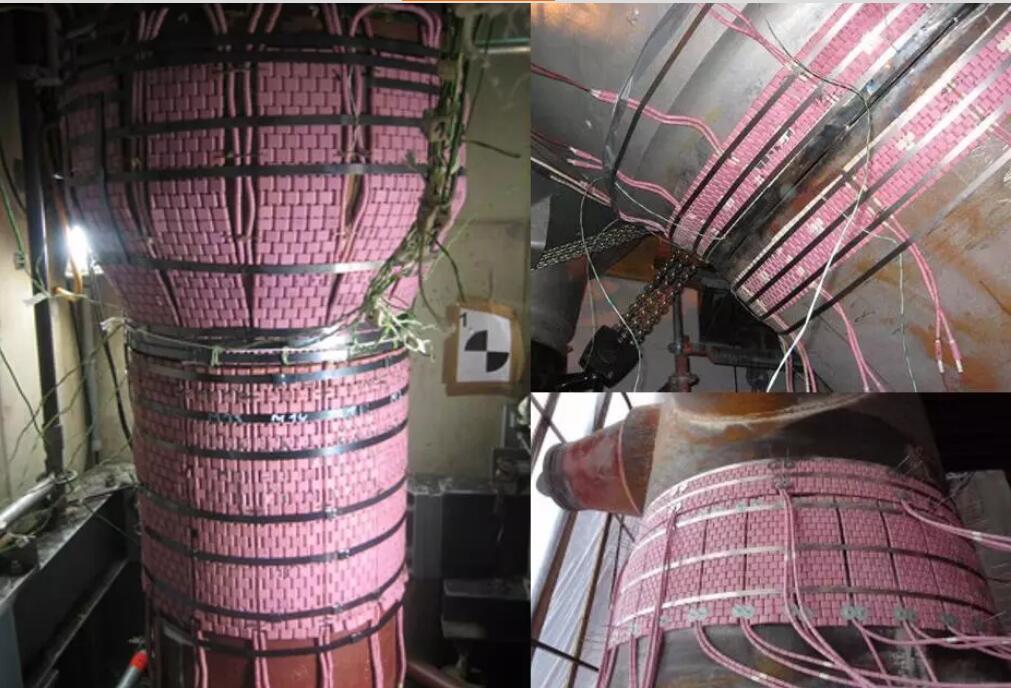

PWHT Cable Vitreous Silica Thermocouple Type K Cable Application

Product Tags:

Vitreous Silica Thermocouple Cable
