Mineral Insulated Thermocouple Extension Wire With Plug Class 1 IEC ANSI High Temperature

Name: Mineral Insulated Thermocouple Extension Wire With Plug Class 1 IEC ANSI High Temperature
Brand: OHMALLOY/OEM
Price: 1 USD

China Mineral Insulated Thermocouple Extension Wire With Plug Class 1 IEC ANSI High Temperature wholesale

Brand Name : OHMALLOY/OEM

Model Number : SP-MI-P

Certification : Rohs

Place of Origin : China

MOQ : 100 meter

Payment Terms : L/C, T/T, , MoneyGram,paypal

Supply Ability : 3000 meter or piece per month

Delivery Time : 5-8 working days

Packaging Details : plywood case

Name : MI Cable Type K N J S R Thermocouple Cable With Plug

Conductor Material : Type K N S R T J

Sheath Material : Stainless Steel/High temperature alloy/Inconel

Plug Style : European style/American style/Omega Style/RS style

MI Length : As customer requirement

Tail Handling : Sealed or open(as customer requirement)

Contact Now

MI Cable Type K N J S R Thermocouple Cable With Plug Class 1 IEC ANSI High Temperature

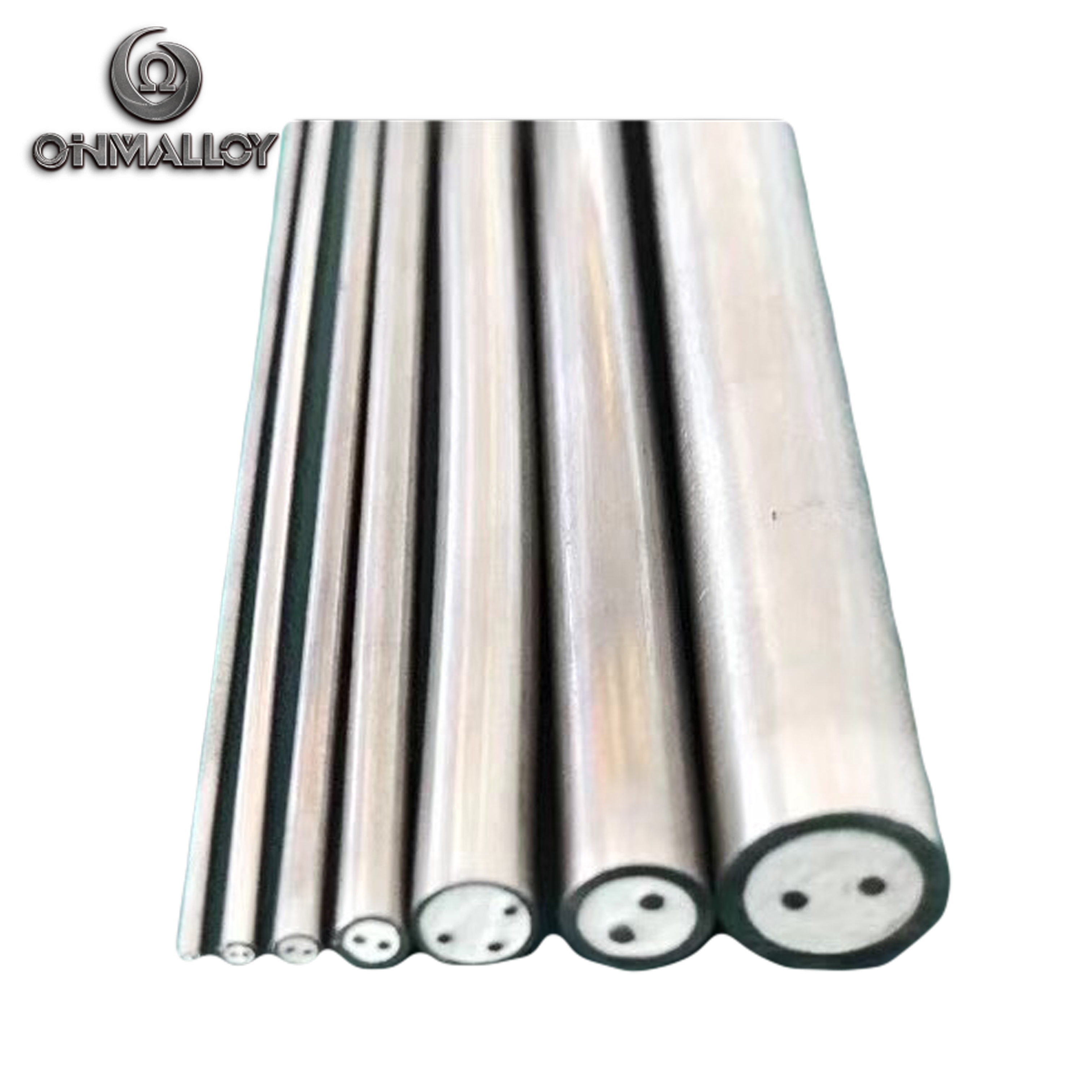

Mineral insulated cable is manufactured from completely inorganic material. The copper sheath and conductors, insulated with magnesium oxide ensure that the cable is able to withstand the effects of fire and is fully usable afterwards. The m.i. cable system provides a simple solution to many difficult wiring problems and makes for a dependable and permanent installation for virtually all types of electrical circuits. The copper cable sheath meets NEC grounding requirements. Suitable for 300 and 600 volt applications. Pressure tested to 2000 psi.

To produce assemblies, the cable is cut to the desired length, pigtails brazed on and terminated with union type glands with male NPT threads.

OHMALLOY can provide the following type and size of mineral insulated cable.

Thermocouple grade	K, E, J, T, N, R,S,B, Cu, Pt100
OD of cable	0.3mm to 12.0mm
Sheath material	SS304, SS321, SS316, SS310, Inconel 600, GH3039, copper
Core type	1-core, 2-core, 3-core, 4-core....
EMF tolerance	Class First(I) or Special

Mineral Insulated Thermocouple Extension Wire With Plug Class 1 IEC ANSI High Temperature
