Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I

Name: Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I
Brand: Ohmalloy/OEM
Price: 0.52 USD

Brand Name : Ohmalloy/OEM

Model Number : SP-J-HP-HP-0.5R

Certification : SGS/RoHs

Place of Origin : China

MOQ : 50 meters

Price : USD 0.52-1.85 / Meter

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 100000 meters / month

Delivery Time : 2-5 working days

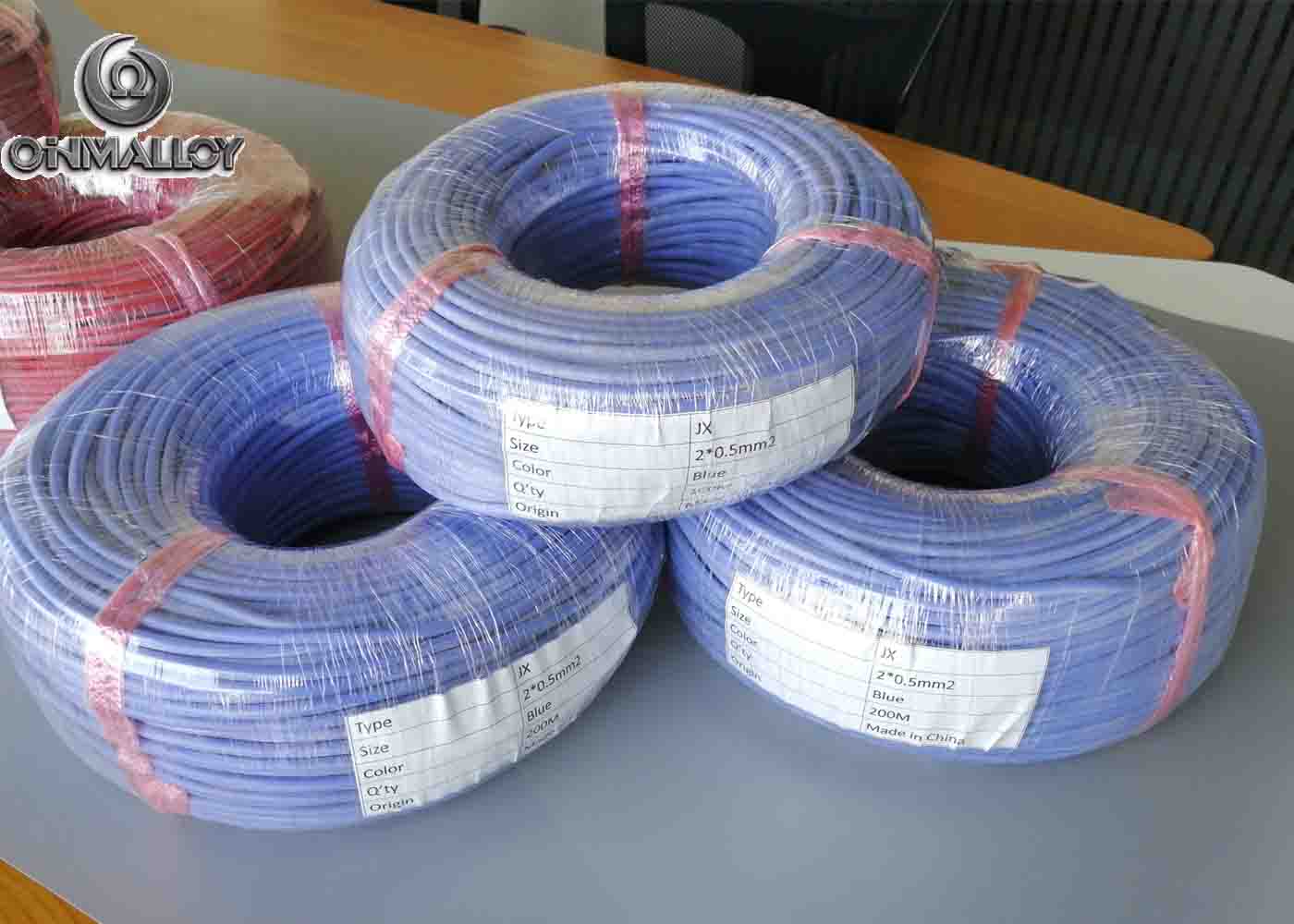

Packaging Details : Coil/Spool+paper carton+ wooden pallet

Name : Thermocouple Wire Type J -10→105°C Multi Strands PVC Insulated Cable Accuracy Class I

Conductor : + Iron -Constantan

Insulated Material : PVC(or customized)

Max working Temperature : 105 degree celsius

Accuracy : Class I (T±4%)

Length : 100meter/200meter/500meter(customized)

Contact Now

PEF/Fiberglass Insulation Prices Type J Thermocouple Cable Multi Strands 24AWG

TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538°C, and therefore heavier gauge wire is recommended for longer life at these temperatures.

1. Chemical Composition

Material	Chemical composition (%)
Material	Ni	Cu	Si	Iron	Al
JP(Iron)				100
JN(Constantan)	45	55

2. Physical Properties and Mechnical Properties

Material

Density(g/cm³)

Melting point(℃)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)

JP(Iron)

7.8

1402

>240

12.0(20℃)

>20

JN(Constantan)

8.8

1220

>390

49.0(20℃)

>25

3. EMF Value Range at Different Temperature

Material

EMF value (μV)

100℃

200℃

300℃

400℃

500℃

600℃

JP-JN

5187~5351

10696~10862

16244~16410

21760~21936

27281~27505

32962~33242

EMF value Vs Pt(μV)

700℃

750℃

760℃

800℃

900℃

1000℃

38958~39306

42089~42473

42725~43113

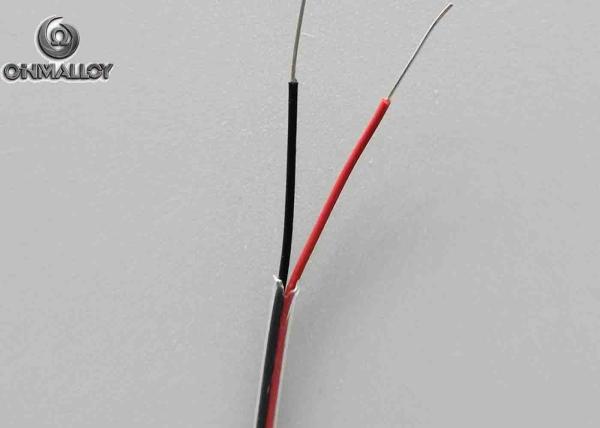

Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I

ReF. The Short Name for Materials

Type	Insulation material	CODE	Inner Shielding	CODE	JACKET	CODE
K	FEP	FP			FEP	FP
T	PFA	FA	Al foil	AL	PFA	FA
E	PVC 70℃	LP	copper wire	CU	PVC 70℃	LP
J	PVC 105℃	HP	Tinned copper	TC	PVC 105℃	HP
N	Fiberglass 400℃	BL	Nickel plated copper	NC	Fiberglass 400℃	BL
SC	Fiberglass600℃	BM	Silver plated copper	AC	Fiberglass600℃	BM
	Fiberglass700℃	BH			Fiberglass700℃	BH
	MICA FIBER 650℃	MA
KCA	Vitreous Silica 800℃	VS	SS 304 wire	SS	Vitreous Silica 800℃	VS
KCB	Silica fiber1000℃	SV	Inconel 600 wire	600	Silica fiber1000℃	SV
RTD	Ceramic fiber1200℃	CF	Inconel 625 wire	625	Ceramic fiber1200℃	CF
	PTFE	PT			PTFE	PT
	ETFE	ET			ETFE	ET
	KAPTON	KP			KAPTON	KP
	Silicone rubber	SR			Silicone rubber	SR
	Rubber	RU			Rubber	RU
	PE	PE			PE	PE
