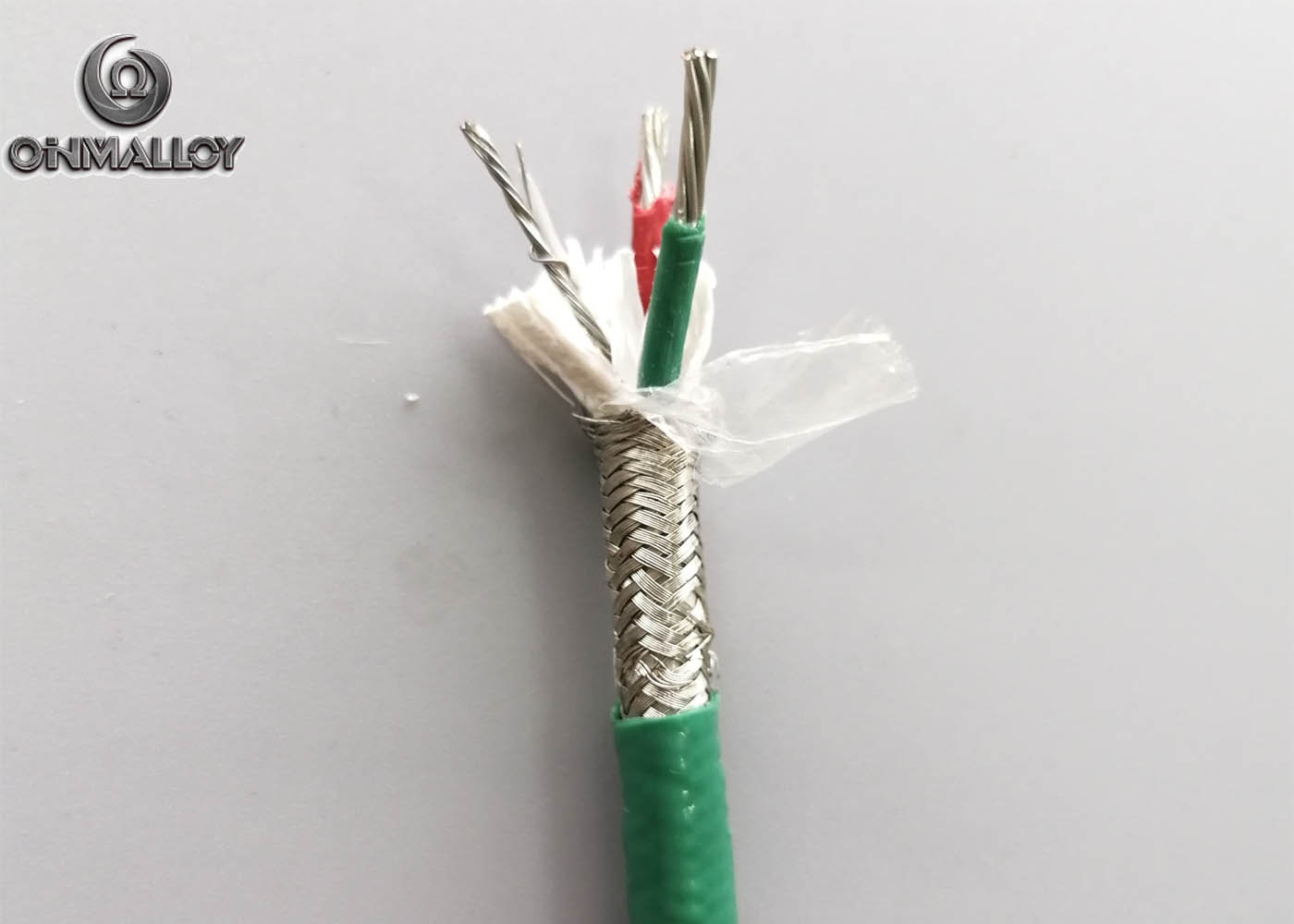

Name: Type K Extension Cable Wire Insulated Class I IEC 584 SS304 Sheath
Brand: Ohmalloy/OEM
Price: 0.52 USD

Brand Name : Ohmalloy/OEM

Model Number : SP-K-FP-SS304-FP-0.5R

Certification : SGS/RoHs

Place of Origin : China

MOQ : 50 meters

Price : USD 0.52-1.85 / Meter

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 100000 meters / month

Delivery Time : 2-5 working days

Packaging Details : Coil/Spool+paper carton+ wooden pallet

Name : EXtension Cable Wire Type K -50 → +200 °C Insulated Class I IEC 584 SS304 Sheath

Conductor : 7/0.3mm

Insulation Material : (FEP 200 degree celsius)

Accuracy : Class I

Max Operation Temperature : 200 degree celsiuu

Color Standard : IEC/JIS/ANSI/DIN(custoermized)

Length : 100meter/200meter/500meter(customized)

Contact Now

Type K Thermocouple Wire Silicone Rubber Insulated Multi Strands Core -10 → +200 °C Class I IEC 584

Attribute	Value
Thermocouple Type	K
Number of Cores	2
Color Standard	IEC/ANSI/JIS/DIN or customized
Minimum Operating Temperature	-50°C
Maximum Operating Temperature	+200°C
Insulation Material
Number of Strands	7
Size of Strands	0.3mm(28 AWG)
Accuracy	Class I
Standards Met	IEC 584-3, RoHS Compliant
Customized Service	Customizable

Chemical Composition

nsulation Code	Insulation		Temperature Range of Insulation	Abrasion Resistance	Flexibility	Water Submersion
nsulation Code	Overall	Conductors	Temperature Range of Insulation	Abrasion Resistance	Flexibility	Water Submersion
PP	PVC	PVC	-40 to 105^oC -40 to 221^oF	Good	Excellent	Good
FF	FEP ® or Neoflon	FEP ®	-200 to 200^oC -338 to 392^oF	Excellent	Good	Excellent
TT	PFA ® or Neoflon	PFA ®	-267 to 260^oC -450 to 500^oF	Excellent	Good	Excellent
TG	Glass Braid	PFA ®	-73 to260^oC -100 to 500^oF	Good	Good	Excellent
GG	Glass Braid	Glass Braid	-73 to 482^oC -100 to 900^oF	Poor	Good	Poor
HH	High Temp Glass Braid	High Temp Glass Braid	73 to 704^oC -100 to 1300^oF	Poor	Good	Poor
XS	Silicon	Silicon	-73 to 1038^oC -100 to 1990^oF	Poor	Good	Poor
TFE	TFE ®	TFE ®	-267 to 260^oC -450 to 500^oF	Excellent	Good	Excellent

Type K Extension Cable Wire Insulated Class I IEC 584 SS304 Sheath
