Type K Multi Strands Core Thermocouple Cable Accuracy Class I 7 / 0.2mm Conductor

Name: Type K Multi Strands Core Thermocouple Cable Accuracy Class I 7 02mm Conductor
Brand: Ohmalloy/OEM
Price: 0.52 USD

China Type K Multi Strands Core Thermocouple Cable Accuracy Class I 7 / 0.2mm Conductor wholesale

Brand Name : Ohmalloy/OEM

Model Number : SP-K-BL-BL-SS304-0.22R

Certification : SGS/RoHs

Place of Origin : China

MOQ : 50 meters

Price : USD 0.52-0.85 / Meter

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 100000 meters / month

Delivery Time : 2-5 working days

Packaging Details : Coil/Spool+paper carton+ wooden pallet

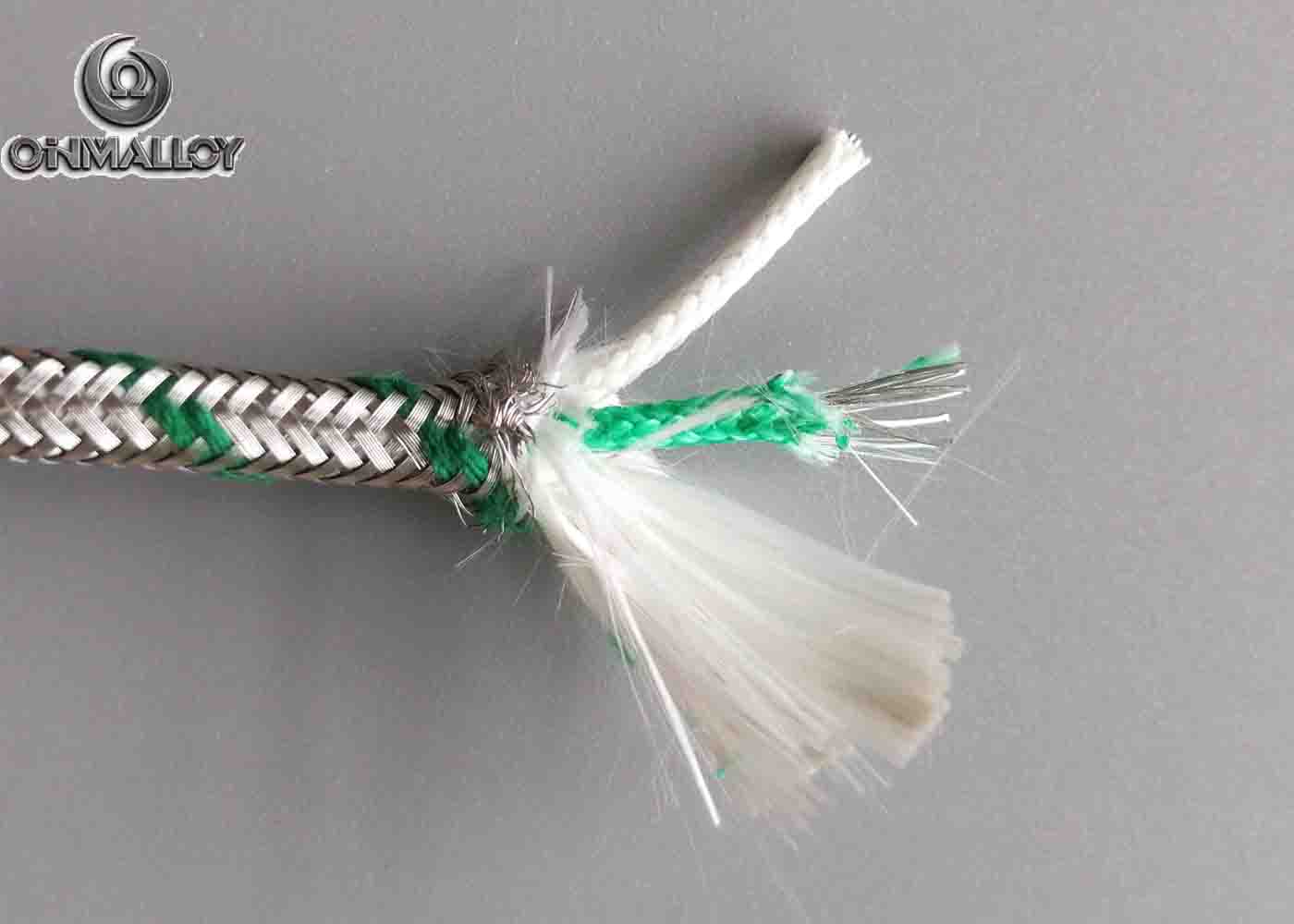

Name : Thermocouple Wire Type K Multi Strands Core Glass Fiber Sheath SS304 Braiding -60 → +400 °C

Thermocouple Type : Type K

Conductor : 7/0.2mm

Insulation Material : Fiber Glass

Sheath Material : SS304 or Tinned Copper

Accuracy : Class I

Max Operation Temperature : 400 degree celsiuu

Contact Now

Thermocouple Wire Type K Multi Strands Core Glass Fiber Sheath SS304 Braiding -60 → +400 °C

Attribute	Value
Thermocouple Type	K
Number of Cores	2
Color Standard	IEC/ANSI/JIS/DIN or customized
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+400°C
Insulation Material	Glass Fiber
Number of Strands	7
Size of Strands	0.2mm(32 AWG)
Accuracy	Class I
Standards Met	IEC 584-3, RoHS Compliant
Customized Service	Customizable

Chemical Composition

Material	Chemical composition (%)
Material	Ni	Cr	Si	Mn	Al
KP(Chromel)	90	10
KN(Alumel)	95		1-2	0.5-1.5	1-1.5

Thermocouple extension wire is used to extend the signal from a probe to instrumentation such as controllers or recording devices. Often times, multi pair thermocouple extension cables are preferred in these applications. Extension wire is designated by an "X" after the ANSI thermocouple type- ie. BX, EX, JX, KX, SX, TX.

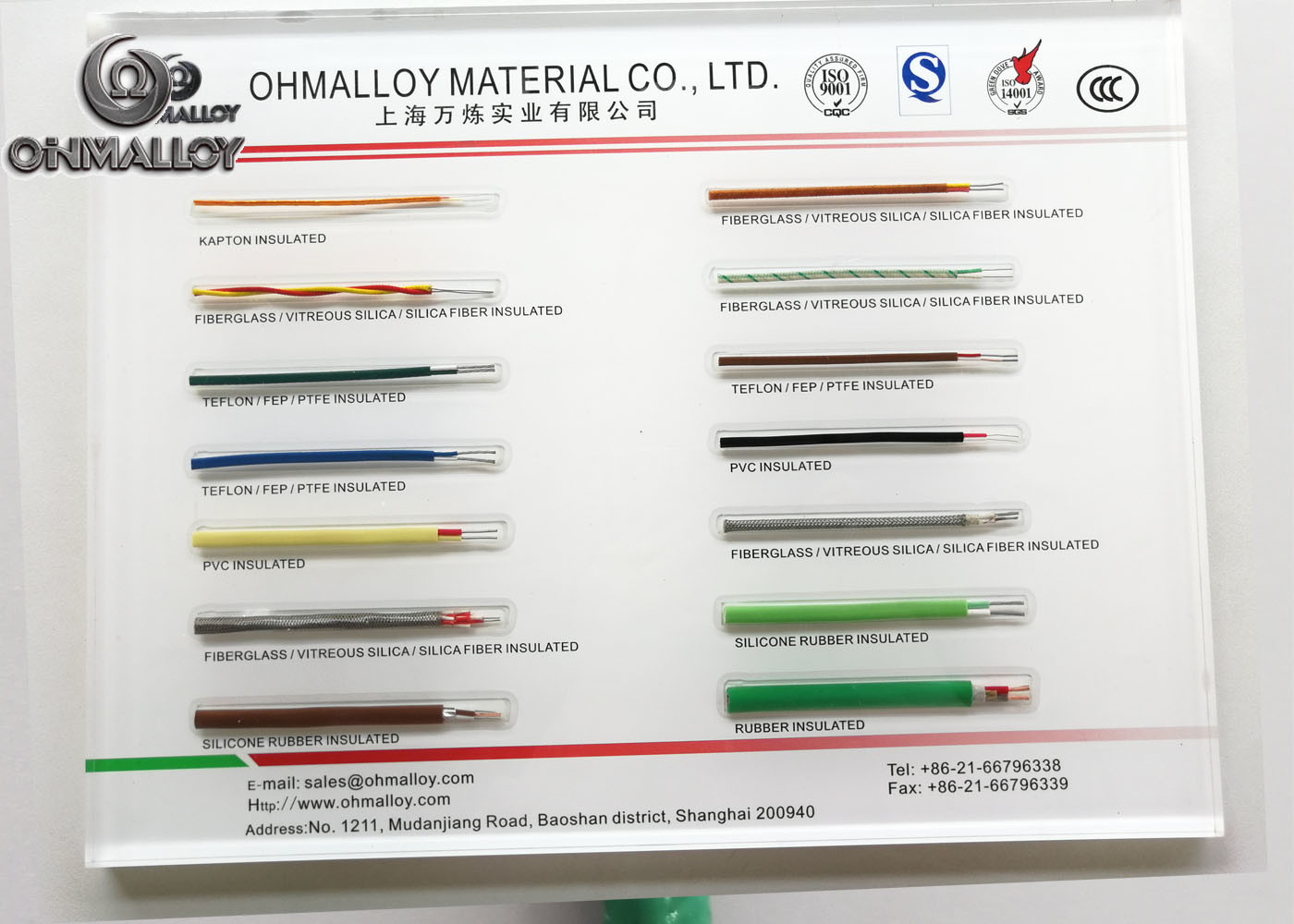

Insulation Code	Insulation		Temperature Range of Insulation	Abrasion Resistance	Flexibility	Water Submersion
Insulation Code	Overall	Conductors	Temperature Range of Insulation	Abrasion Resistance	Flexibility	Water Submersion
PP	PVC	PVC	-40 to 105^oC -40 to 221^oF	Good	Excellent	Good
FF	FEP ® or Neoflon	FEP ®	-200 to 200^oC -338 to 392^oF	Excellent	Good	Excellent
TT	PFA ® or Neoflon	PFA ®	-267 to 260^oC -450 to 500^oF	Excellent	Good	Excellent
TG	Glass Braid	PFA ®	-73 to260^oC -100 to 500^oF	Good	Good	Excellent
GG	Glass Braid	Glass Braid	-73 to 482^oC -100 to 900^oF	Poor	Good	Poor
HH	High Temp Glass Braid	High Temp Glass Braid	73 to 704^oC -100 to 1300^oF	Poor	Good	Poor
XS	Silicon	Silicon	-73 to 1038^oC -100 to 1990^oF	Poor	Good	Poor
TFE	TFE ®	TFE ®	-267 to 260^oC -450 to 500^oF	Excellent	Good	Excellent
