- 200℃ ~ +260℃ K Type Thermocouple Cable 24 AWG With Kapton / PFA Insulation

Name: 200 260 K Type Thermocouple Cable 24 AWG With Kapton PFA Insulation
Brand: OHMALLOY
Price: 20 USD

China - 200℃ ~ +260℃ K Type Thermocouple Cable 24 AWG With Kapton / PFA Insulation wholesale

Brand Name : OHMALLOY

Model Number : K-KP-FA-0.51-ANSI 96.1

Certification : ISO,Rohs

Place of Origin : China(Shanghai）

MOQ : 10KG

Price : 20-50USD/KG

Payment Terms : L/C, T/T, , MoneyGram

Supply Ability : 50 Tons per month

Delivery Time : 7-10 days

Packaging Details : in spool/ carton packed

positive material : Chromel

negative material : Alumel

Conductor size : 0.5mm

Insulator : PFA/kapton

Weight/meter : 0.85kg/100meter

Temperature Range : - 200℃ ~ +260℃

Contact Now

Conductor material:

Material	Chemical composition(%)
Material	Ni	Al	Cr	Si	Mn
Chromel	90		10
Alumel	95	1-2		1-2	0.5-1.5

Structure:

Conductor size	0.5mm
Inner Insulation material	PFA
Insulation layer thickness	0.2mm
Out jacket material	Kapton
Out jacket thickness	0.08mm
OD of cable	1mmX2mm
Weight/meter	0.85kg/100meter

Working Temperature

Long-term max standing temperature	260℃
Shor-term max standing temperature	300℃

Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm

Calibration tolerance:+/-1.1 ℃ or +/-0.4%

Color code: ANSI 96.1 or IEC 584-2

- 200℃ ~ +260℃ K Type Thermocouple Cable 24 AWG With Kapton / PFA Insulation

TECHNICAL DATA

Nominal voltage: 300

Temperature Range: - 200℃ ~ +260℃

O.D.Tolerance: ± 0.1mm

Conductor: +Chromel, -Alumel

Insulator: PFA

Colours: Brown

Standard: ANSI 96.1

Conductor			Insulator			Packing
sectional area mm²	Conductor Construction NO. x φmm	Diameter mm	Insulator Thick mm	Jacket Thick mm	Over Diameter mm	Mt/coils
0.20	7x0.20	0.61	0.20	0.15	1.3X2.3	305
	19x0.12	0.60	0.20	0.15	1.3X2.3	305
0.30	7x0.25	0.76	0.20	0.15	1.5X2.6	305
	19x0.15	0.76	0.20	0.15	1.5X2.6	305
0.50	7x0.3	0.81	0.20	0.15	1.8X2.7	305
	0.81	0.81	0.20	0.15	1.8X2.7	305
1.0	7x0.43	1.13	0.20	0.20	2.0X3.6	305
	1.13	1.13	0.20	0.20	2.0X3.6	305
1.5	7x0.52	1.38	0.35	0.20	2.5X4.4	200
	1.38	1.38	0.35	0.20	2.5X4.4	200

Product Tags:

k type thermocouple cable

thermocouple extension wire

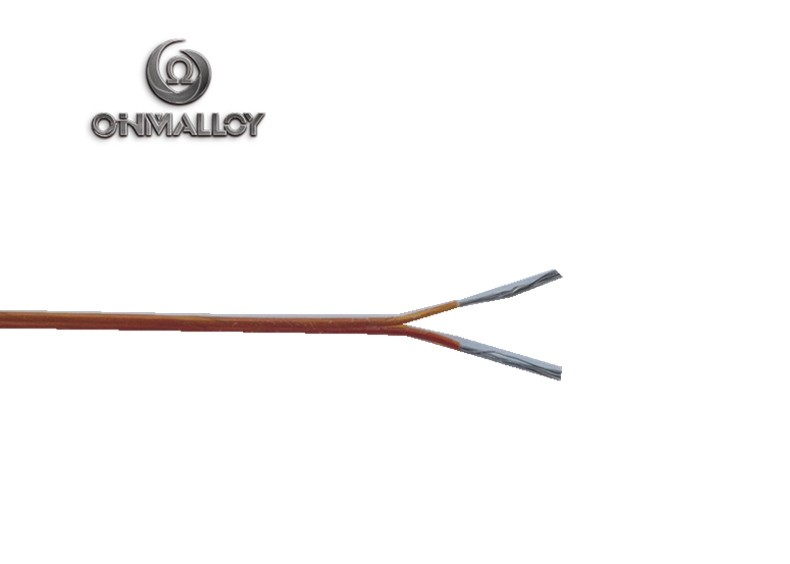

- 200℃ ~ +260℃ K Type Thermocouple Cable 24 AWG With Kapton / PFA Insulation Images
