Thermocouple Stranded Twisted Tinned Copper Silicone Insulated Wires 3x2.5 Cross Section

Name: Thermocouple Stranded Twisted Tinned Copper Silicone Insulated Wires 3x25 Cross Section
Brand: OHMALLOY
Price: 1 USD

China Thermocouple Stranded Twisted Tinned Copper Silicone Insulated Wires 3x2.5 Cross Section wholesale

Brand Name : OHMALLOY

Model Number : K-HP-HP-817

Certification : ISO9001-2008

Place of Origin : China(Shanghai)

MOQ : 2000meters

Price : negotiable

Payment Terms : L/C, T/T, , D/P, D/A

Supply Ability : 500000meters per month

Delivery Time : 10 days

Packaging Details : 100m/spool

Material : Tinned copper

Insulation : silicone rubber

Diameter : 3x2.5m㎡

Color : ANSI code

Jacket : silicone rubber

Surface : Bright&Annealed

Type : Ohmalloy K-HP-HP-817

Contact Now

Thermocouple Stranded Twisted tinned Copper silicone insulated wires 3x2.5 cross section

Product description:

Product name	Thermocouple cable
Conductor Material	tinned cooper
Insulation material	silicone rubber
Conductor Dia	0.25mm*51
Standard	ANSI MC 96.1
Insulation Color	Red/Yellow or black/brown
Shielding	/
Jacket	Silicone rubber
Packing	100m/roll
Gross weight	8.2KG/roll
Delivery time	7 working days after payment
Payment	T/T or L/C at sight, Paypal
Shipping	By DHL, Fedex, Aramex, etc.

Rated Voltage	220V
Rated temperature	180°C
Conductor	Fit for GB/T3956-1997 requirment
Type	3x2.5m㎡
Conductor material	Tinned cooper wire
Stranded	Stranded
Stranded cores	51
single wire diameter	0.25mm
Use temperature	180°C
Insulation	IEC silicone rubber mixture
Insulation thickness	0.8mm
insulation OD	3.7-3.8mm
ovality	less than 15
Jacket thickness	1.0mm
whole cable OD	10.2-11.4mm
Conductor resistance	≦8.21(Ω/Km)

Company profile

Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy
such as high resistance alloy, low-resistance copper nickel alloy, FeCrAl alloy and thermocouple
Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and
slitting, full set of testing machine and can meet all kinds of technical requirement from customer.
Our product is widely used in heating equipment, big steel mill, mineral,electrical equipment, food
machinery,auto industry,aerospace industry.Our product not only is popular in domestic market, but
also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world.We insist on developing the
more advanced alloy strip technology, to serve all the customer, improve people's living level,make
a more green earth in the future.

Product&Package:

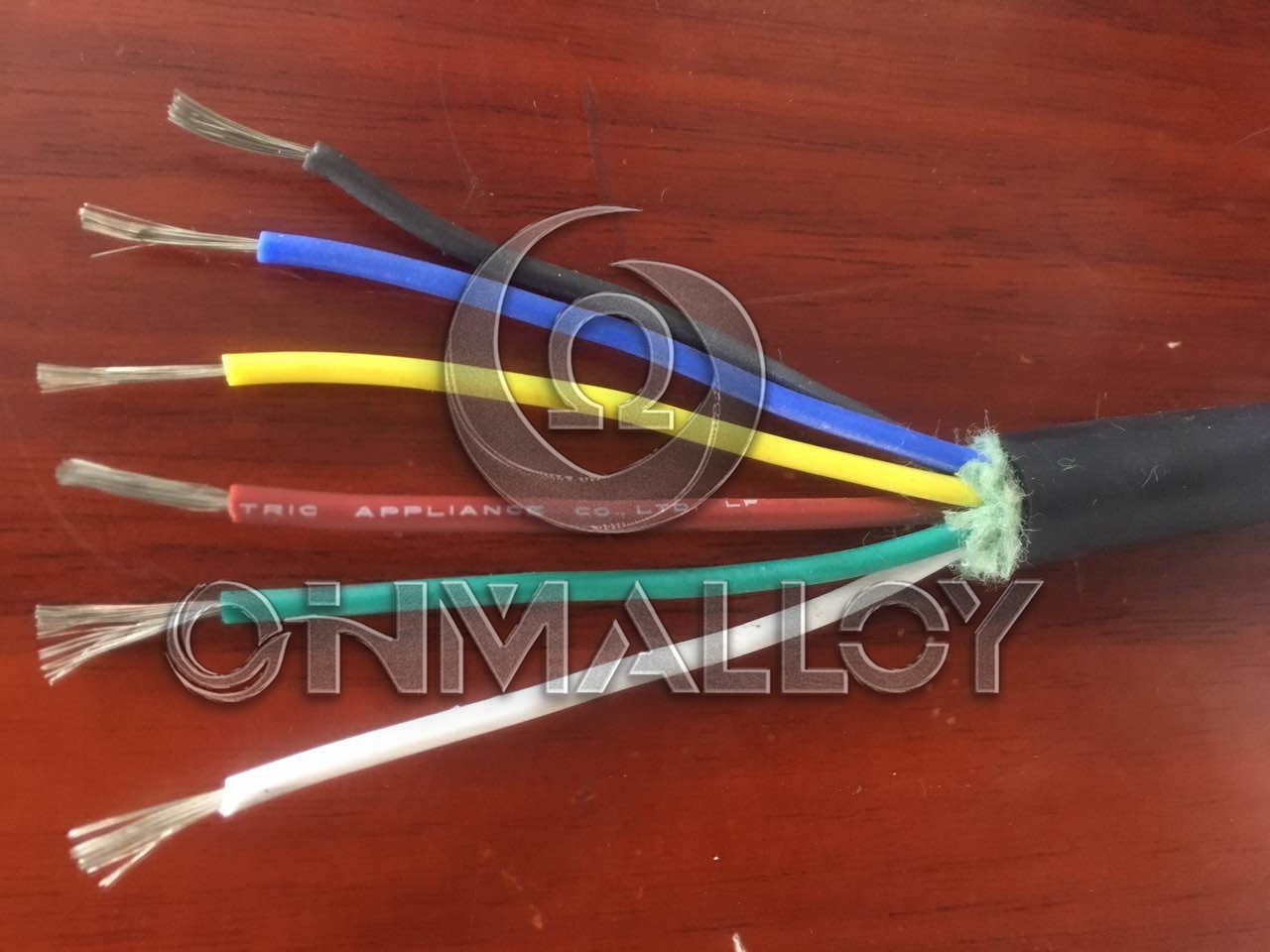

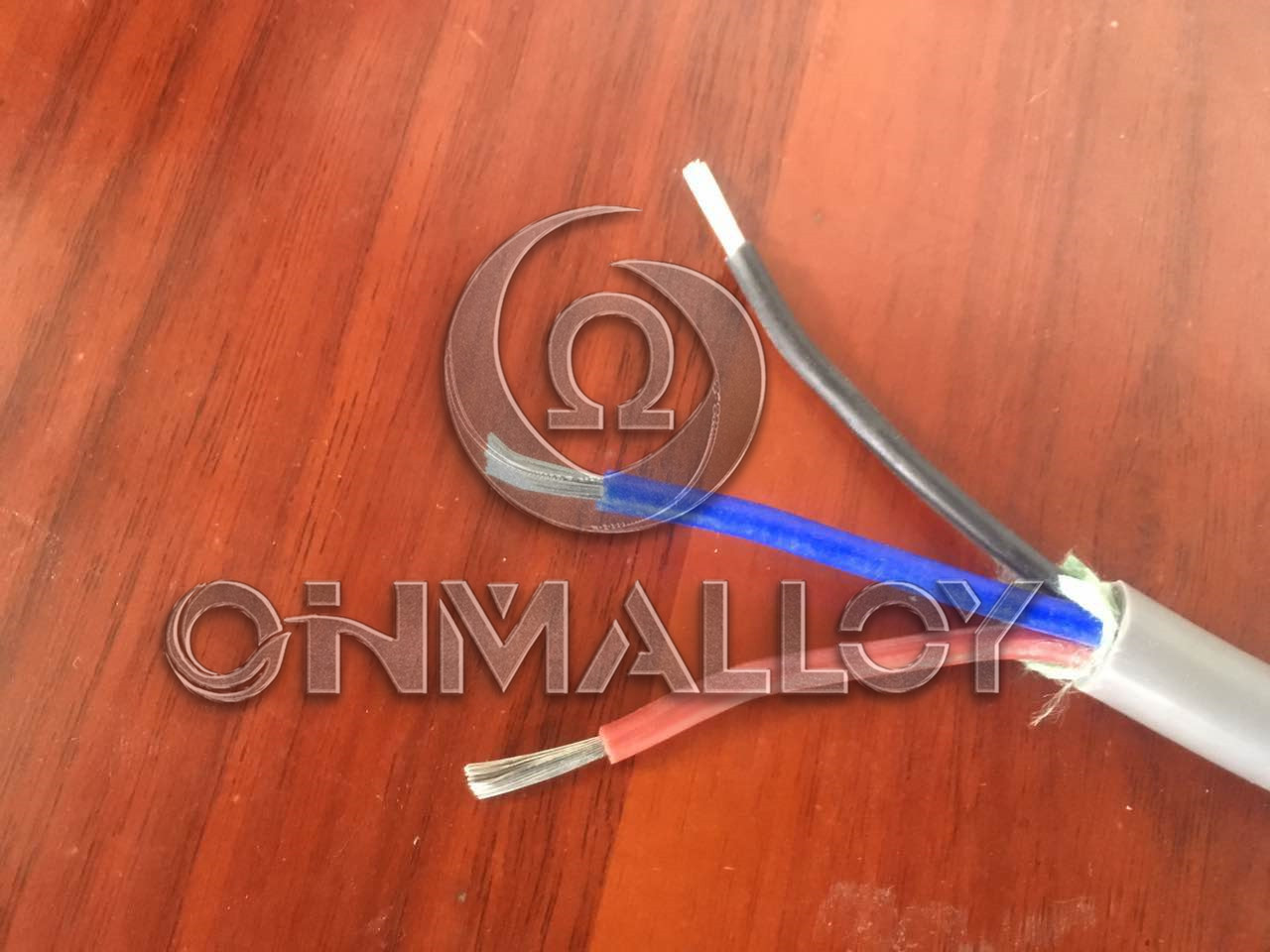

Thermocouple Stranded Twisted Tinned Copper Silicone Insulated Wires 3x2.5 Cross Section
