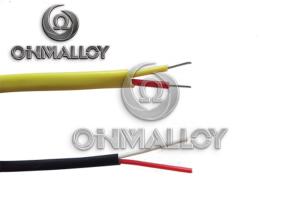

Iron / Constantan Material J Type Thermocouple Cable AWG20 PVC Insulation

Name: Iron Constantan Material J Type Thermocouple Cable AWG20 PVC Insulation
Brand: OHMALLOY
Price: 1 USD

Brand Name : OHMALLOY

Model Number : K-HP-HP-33

Certification : ISO9001-2008

Place of Origin : China(Shanghai)

MOQ : 100 meters

Price : negotiable

Payment Terms : L/C, T/T, Paypal

Supply Ability : 500000meters per month

Delivery Time : 10 -15 days

Packaging Details : 100m/spool, 305m/spool, 1000ft/spool, 1000m/spool

Material : Iron, Constantan

Insulation : PVC.

Diameter : 10AWG,12AWG,14AWG,16AWG, 18 AWG, 20 AWG, 24 AWG

Color : ASTM code,ANSI code, IEC code, GB/T standard

Contact Now

Type J Extension Cable Iron / Constantan Material PVC Insulation

Specifications

1.Style:Extension Wire
2.Thermocouple wire

Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
Fe-CuNi	J	-40-750

3 . Dimensions and Tolerance of PVC Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25

Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	+/- Conductor	Jacket	Temperature Range	Standard Limits	Special Limits
Iron(+) vs. Constantan(-)	J	White/Red	Brown	0°C to +285°C 285°C to +750°C	±2.2°C ± .75%	±1.1°C ± .4%
CHROMEL(+) vs. ALUMEL(-)	K	Yellow/Red	Brown	-200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C	± 2% ±2.2°C ±2.2°C ± .75%	±1.1°C ± .4%
Copper(+) vs. Constantan(-)	T	Blue/Red	Brown	-200°C to -65°C -65°C to +130°C 130°C to +350°C	± 1.5% ±1°C ± .75%	± .8% ± .5°C ± .4%
CHROMEL(+) vs. Constantan(-)	E	Purple/Red	Brown	-200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C	± 1% ±1.7°C ±1.7°C ± .5%	±1°C ±1°C ± .4% ± .4%

Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	+/- Conductor	Jacket	Temperature Range	Standard Limits	Special Limits
Iron (+) vs. Constantan(-)	JX	White/Red	Black	0°C to +200°C	±2.2°C	±1.1°C
CHROMEL (+) vs. ALUMEL (-)	KX	Yellow/Red	Yellow	0°C to +200°C	±2.2°C	±1.1°C
Copper(+) vs. Constantan(-)	TX	Blue/Red	Blue	-60°C to +100°C	±1.1°C	± .5°C
CHROMEL(+) vs. Constantan(-)	EX	Purple/Red	Purple	0°C to +200°C	±1.7°C	±1.1°C

PVC-PVC Physical Properties:

Characteristics	Insulation	Jacket
Abrasion Resistance	Good	Good
Cut Through Resistance	Good	Good
Moisture Resistance	Excellent	Excellent
Solder Iron Resistance	Poor	Poor
Service Temperature	105ºC continuous 150ºC single	105ºC continuous 150ºC single
Flame Test	Self-extinguishing	Self-extinguishing
